제품 상세 정보:
결제 및 배송 조건:
|
| 전지법: | Li 이온 중합체 건전지 | OS: | 안드로이드 7 또는 그이상 |
|---|---|---|---|
| 마이크: | 음성 입력 | 스크린: | 5.5 인치 터치 스크린 |
| 메모리: | 256-비트 급변 기반을 둔 배터리-백업 AES 키 저장 | 기준: | PCI EMV PBOC |
| 터치 패널: | G+F+F, 전기 용량, 다중 터치. | 배터리: | 3.7V 5800mAh |
| 강조하다: | 안드로이드 7 지문 POS terminal,5.5 " 지문 포스 터미널,안드로이드 생체 측정 POS 기계 |
||

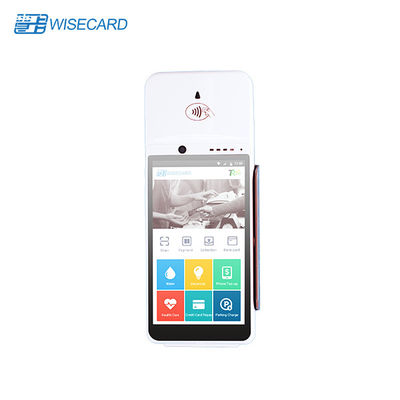

WCT-S6 is a powerful four core Android OS smart POS terminal with differentiating security method of latest finger vein module which makes it bring you highest security level. Besides, it also comes with facial and ID recognition modules for application flexibility and more securities.
| WCT-T60 Android POS Configuration: | ||
| Type | Product Specification: | |
| Platform | Application Processor | MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 2GB LPDDR3 | |
| FLASH | 16GB EMMC | |
| OS | Android 7.0 | |
| Security Processor | MAX32555 (DeepCover Secure microcontroller) | |
| MEMORY | 60MHz Core Operating Frequency 512KB Dual-Bank Flash Memory with Cache 96KB System SRAM 1KB AES Self-Encrypted NVSRAM 256-Bit Flip-Flop-Based Battery-Backup AES Key Storage |
|
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/UMTS/HSPA/HSPA+/DC-HSPA+/EVDO/TDS-CDMA/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) | |
| TDD-LTE : B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
| TDS-CDMA : B34/B39 | ||
| EVDO : BC0 | ||
| 2G | EDGE/GPRS : B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | USIM | 2 slots |
| GPS | GPS | GPS, GLONASS |
| Verification | Verification | Finger Vein Biometric Verification Module |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive,Multi Touch. | |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Serial Port | RS232 | POGO PIN ON REAR CASE |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum | 13.56MHz | |
| IC card | Standard | ISO 7816 (1.8V / 3V / 5V T=0, T=1.) |
| PSAM card | PSAM | 4 slots ( compliant with ISO7816 ) |
| MSR | Standard | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Backup battery | coin battery | CR2032 |
| LED indicator | Status | Triple color LED ( RED/GREEN/Orange) |
| NFC indicator | blue/yellow/green/red | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
* e-kyc in bank, to enrollment and identity customer
* Biometric authorization instead of password or card etc.
* e-kyc in telecom, hospital etc.
* Warehouse stock management
Q: Do you offer warranty for the device?
A: Yes, we offer one year warranty& lifelong technical support.
Q: What is your MOQ
A: MOQ is 1pcs.
Q: What is your payment term?
A: Paypal, T/T (Bank Transfer), Western Union, Cash, Visa and Credit Card via Acer is preferred.
Q: How to get software and SDK?
A: Software and SDK is free. Will share download link via dropbox after you place order.
