WCT-T80 포켓용 안드로이드 포스 터미널 4G NFC MT8766 모바일 시스템
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
상세 정보 |
|||
OS: | 안드로이드 7 또는 그이상 | 지문: | 선택적입니다 |
---|---|---|---|
스크린: | 5.5 인치 터치 스크린 | 배터리: | 7.4V5800mAh |
인쇄 기계: | 인베디드된 써멀 프린터 | 카메라: | 5M 화소 |
통신: | 2G / 3G / 4G /wifi, 블루투스 | 색: | 빨강과 녹색 |
강조하다: | 5.5in Android POS Terminal,CE Android POS Terminal,4G POS machine with fingerprint scanner |
제품 설명

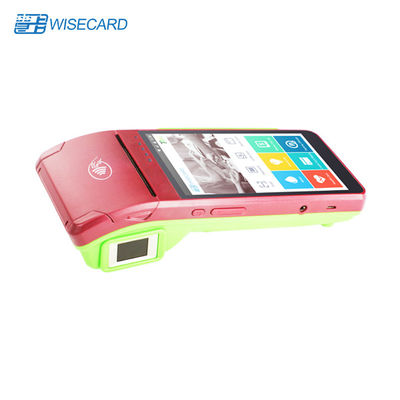

WCT-S8 is an intelligent multimedia handheld POS terminals, it adopts the mainstream intelligent technology, uses 4G, 3G, 2G, WIFI, and other communication technology, the safest Android version 7.0. security chip meets with the requirement of the PCI, reaching the highest safety standards of international PCI5. X, which makes it the absolute secury financial payment smart POS terminal. It supports to swipe magnetic stripe card, read smart IC card and contactless IC card, QR code, etc, which is the flagship product in the field of financial payment.
★ Smart Payments All In One Machine
WCT-S8 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.
★ Fingerprint Reader
FBI certified fingerprint reader or other types optional.
★ 5800mAH Large Battery Super Endurance
WCT-S8 comes with a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
WCT-S8 Android POS Configuration | ||
Type | Product Spec | |
Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
RAM | 1GB / 2GB LPDDR3 | |
FLASH | 8GB / 16GB EMMC | |
OS | Android 7.0 Security Payment OS | |
Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
4G | LTE-FDD : B1/B3/B8 (TBD) | |
TDD-LTE : B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
TDS-CDMA : B34/B39 | ||
EVDO : BC0 | ||
2G | EDGE/GPRS : B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
GPS | GPS | GPS, GLONASS |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
Spectrum | 13.56MHz | |
IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
EMV card | Smart Card | EMV & PBOC Compliant |
MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH | |
Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
Micro Printer | Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*40 mm | |
Effective Printing area | 48mm | |
Speed | Maximum 70mm/sec(480 dot line/sec) | |
Printing resolutions | 8 dots/mm | |
Character | 12*24dots and 24*48 dots | |
Number of columns | 32columns/line | |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2. About Sample:
Sample is Free, but the air freight is collected or you pay us the cost in advance.
3. About language and operation system:
Our printers support 48 different languages include English, Russian, Spanish and so on. It backups IOS, Android, Windows, Linux, Oppos operation systems.
4. About warranty:
Each printer will have one year (12 months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
5. About MOQ:
No MOQ limitation for the standard products, but the unit price is different. For customized production, you can discuss the MOQ with our sales rep.
6. About Shipment:
We accept all kinds of shipping ways including: express, air, sea, car, or pick up by customers personally.
7. About Payment:
Terms For mass order, you can pay us by using T/T.
About samples order, T/T is acceptable.
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
