WCT-T80 포켓용 안드로이드 포스 터미널 4G NFC MT8766 모바일 시스템
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
상세 정보 |
|||
표준: | PCI PTS EMV | 연결: | 블루투스 |
---|---|---|---|
카드리더: | 비접촉식, 접촉, 자기 띠 | 영수증: | 메일 또는 SM |
중량: | 116g는 (배터리를 포함합니다) | 프로세서: | 32개 비트 보안 처리기 |
디스플레이: | 2 인치 컬러 엘씨디 디스플레이 | 배터리: | 재충전 리튬 전지, 3.7V/ 250mAh |
강조하다: | EMV mobile point of sale devices,NFC mPOS terminal,EMV mPOS terminal |
제품 설명

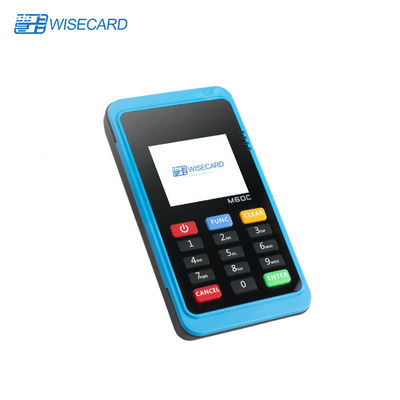

An innovative mobile payment terminal, connects with mobile phones and other smart devices via Bluetooth®, combined with multiple applications, supports for magnetic card, IC card and contactless card. Support keyboard input password, LCD prompt transaction information and electronic signatures. Small and portable, simple operation, smart and security, bring you a new era of mobile payment experience!
Product Specification:
Specifications | |
Processor | 32-bits High-performance security processor |
Memory | 512KB flash, 64KB SRAM, External: 2MB flash |
Display | 2 inches 320*240 Color LCD display |
Keypad | 10 alphanumeric keys, 4 function keys, 1 power key |
Magnetic Card Reader | Compliant with ISO7811, ISO7812 |
Track 1/2/3, Bi-directional Swipe | |
IC Card Reader | Meets EMV/ PBOC 3.0 standards |
Contactless Reader | Support ISO/ IEC 14443 Type A&B, ISO/IEC 14443&7816 Standards |
Status Bar | 4 signal lights |
Communication | Bluetooth 4.0, Support Android, IOS and Windows |
Interface | Micro USB |
Language | Support Chinese, English, etc. |
Battery | Rechargeable Lithium battery, 3.7V/ 250mAh |
Working Environment | Temperature: 0~50℃(32~122℉) Humidity: 10%~90%(non-condense) |
Storage Environment | Temperature: -20~70℃(-4~158℉) Humidity: 5%~95%(non-condense) |
Cable | USB Cable |
Dimensions | 120mm*65mm*17.5mm(L*W*H) |
Weight | 116g (include battery) |
Certification | PCI PTS 5.x, EMV Contact L1&L2, EMV Contactless L1, PBOC 3.0 L1&L2 |
Optional Module | Built-in 1D/ 2D Barcode Scanner |
1. Android 5.1 operating system: high security OS;
2. carry easily: 4.5-inch screen. It’s about the same size as a mobile phone, and it’s easy to carry, making it easier for you to work outdoors;
3. strong performance:CPU: Qualcomm quad-core, 1.1 GHz
4. Safe payment: It has a lot of payment methods. Conform to < China unionpay terminal security standards>,<China unionpay terminal Applicaion standards>, as well as EMVPCCCCCTA,and other domestic and international security standards,with anti-demolition, anti-atack,anti-spy hardware, physical safety design,and unique PIN input protection technology.
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
