제품 세부정보
원래 장소: 중국
브랜드 이름: Wisecard
인증: PCI PTS EMV CE Rohs

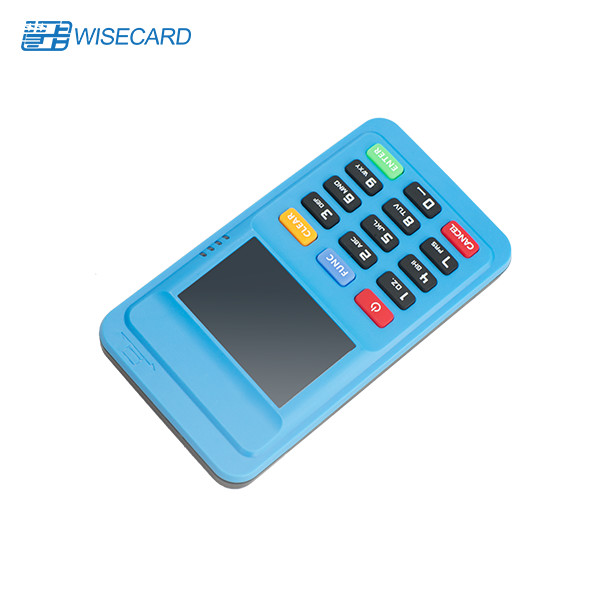

모델 번호: WCT-m60C
결제 및 배송 조건
최소 주문 수량: 교섭할 수 있습니다
가격: negotiable
포장 세부 사항: 종이상자
배달 시간: 1-4 주
지불 조건: 전신환
공급 능력: 달 당 20000 단위
표준: |
PCI PTS EMV |
연결: |
블루투스 |
카드리더: |
비접촉식, 접촉, 자기 띠 |
언어: |
지원 중국, 영어, 기타 등등. |
스캐너: |
바코드와 QR 코드 |
인터페이스: |
마이크로 USB |
디스플레이: |
2 인치 컬러 엘씨디 디스플레이 |
배터리: |
3.7V250mAh |
표준: |
PCI PTS EMV |
연결: |
블루투스 |
카드리더: |
비접촉식, 접촉, 자기 띠 |
언어: |
지원 중국, 영어, 기타 등등. |
스캐너: |
바코드와 QR 코드 |
인터페이스: |
마이크로 USB |
디스플레이: |
2 인치 컬러 엘씨디 디스플레이 |
배터리: |
3.7V250mAh |
Product Specification:
| Specifications | |
| Processor | 32-bits High-performance security processor |
| Memory | 512KB flash, 64KB SRAM, External: 2MB flash |
| Display | 2 inches 320*240 Color LCD display |
| Keypad | 10 alphanumeric keys, 4 function keys, 1 power key |
| Magnetic Card Reader | Compliant with ISO7811, ISO7812 |
| Track 1/2/3, Bi-directional Swipe | |
| IC Card Reader | Meets EMV/ PBOC 3.0 standards |
| Contactless Reader | Support ISO/ IEC 14443 Type A&B, ISO/IEC 14443&7816 Standards |
| Status Bar | 4 signal lights |
| Communication | Bluetooth 4.0, Support Android, IOS and Windows |
| Interface | Micro USB |
| Language | Support Chinese, English, etc. |
| Battery | Rechargeable Lithium battery, 3.7V/ 250mAh |
| Working Environment | Temperature: 0~50℃(32~122℉) Humidity: 10%~90%(non-condense) |
| Storage Environment | Temperature: -20~70℃(-4~158℉) Humidity: 5%~95%(non-condense) |
| Cable | USB Cable |
| Dimensions | 120mm*65mm*17.5mm(L*W*H) |
| Weight | 116g (include battery) |
| Certification | PCI PTS 5.x, EMV Contact L1&L2, EMV Contactless L1, PBOC 3.0 L1&L2 |
| Optional Module | Built-in 1D/ 2D Barcode Scanner |
* 58mm thermal receipt printer
* 1D & 2D code scanner
* Support 3G net
* Support WIFI
* SDK support
* CE standard
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
![]()
