안드로이드 7.0 생체 측정 포스 터미날, 프린터와 가지고 다닐 수 있는 POS 기계는 배터리에서 설립되었습니다
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
상세 정보 |
|||
컵: | 4개의 핵심 프로세서 | OS: | 안드로이드 7 또는 그이상 |
---|---|---|---|
베인모듈: | 고속도 1시 1분, 1 다음엔 | 스크린: | 5.5 인치 터치 스크린 |
LED 지시자: | 3중 리드된 컬러 (오렌지색인 빨간색 / 녹색 /) | NFC 인증: | EMV 비접촉식 L1 / 큐피복 L1 EMV 비접촉식 L2 / 큐피복 L2 |
운영 환경: | 온도 +50 'C 상대 습도에 대한 -5 10 % 내지 85 % RH | 저장 환경: | 온도 +60 'C 상대 습도에 대한 -10 10 % 내지 90 % RH |
강조하다: | 생체 측정 휴대용 카드 결제 장치,EMV 휴대용 카드 결제 장치,5.5 " 가지고 다닐 수 있는 그프스 포스 터미널 |
제품 설명

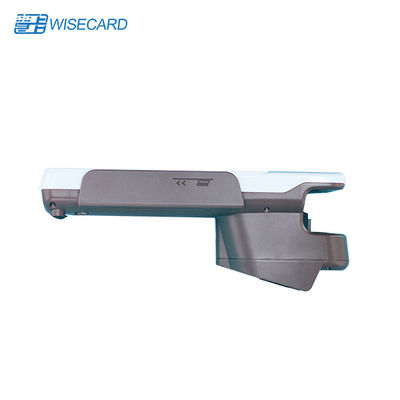

WCT-S6 is a four core Android OS smart POS terminal with differentiating security method of latest finger vein module which makes it bring you highest security level.
WCT-S6 is a powerful terminal with ID, vein and facial recognition modules, which enables us to integrate with Security Access, ID verification, MOC purpose. This terminal is targeted to verification and payment industry.
WCT-S6 is also embedded with secure element to be able to pass EMV and PCI certification. With fully loaded comm module and various verification options, it can meet various purposes and scenarios for verification and transactions. This terminal is equipped with Android 7.0 and delicate touch display to maximize the customer experience and provide more colorful application features beyond your expectation!
WCT-T60 Android POS Configuration: | ||
Type | Product Specification: | |
Platform | Application Processor | MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
RAM | 2GB LPDDR3 | |
FLASH | 16GB EMMC | |
OS | Android 7.0 | |
Security Processor | MAX32555 (DeepCover Secure microcontroller) | |
MEMORY | 60MHz Core Operating Frequency 512KB Dual-Bank Flash Memory with Cache 96KB System SRAM 1KB AES Self-Encrypted NVSRAM 256-Bit Flip-Flop-Based Battery-Backup AES Key Storage |
|
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/UMTS/HSPA/HSPA+/DC-HSPA+/EVDO/TDS-CDMA/EDGE/GPRS |
4G | LTE-FDD : B1/B3/B8 (TBD) | |
TDD-LTE : B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
TDS-CDMA : B34/B39 | ||
EVDO : BC0 | ||
2G | EDGE/GPRS : B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | USIM | 2 slots |
GPS | GPS | GPS, GLONASS |
Verification | Verification | Finger Vein Biometric Verification Module |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive,Multi Touch. | |
Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Serial Port | RS232 | POGO PIN ON REAR CASE |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
Spectrum | 13.56MHz | |
IC card | Standard | ISO 7816 (1.8V / 3V / 5V T=0, T=1.) |
PSAM card | PSAM | 4 slots ( compliant with ISO7816 ) |
MSR | Standard | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Backup battery | coin battery | CR2032 |
LED indicator | Status | Triple color LED ( RED/GREEN/Orange) |
NFC indicator | blue/yellow/green/red | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH |
Ø security payment OS, Based on Android 7.0;
Ø 5.5 inch TFT IPS LCD, resolution 1280*720;
Ø Built-in high speed thermal printer , with over 50Km print life
Ø Full bands for global coverage: 4G/3G/2G,WLAN,VPN
Ø Authentec,508dpi fingerprint module for biometric identification
Ø Dual camera for quickly QR code scan & Honeywell 2D scanner as option
Ø One-stop payment of MSR/IC/NFC, with PCI PTS 5.X, EMV L1&L2 certified
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
