WCT-T80 포켓용 안드로이드 포스 터미널 4G NFC MT8766 모바일 시스템
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
상세 정보 |
|||
프로세서: | 4 핵심 암 Cortex-A53 | OS: | 안드로이드 7 또는 그이상 |
---|---|---|---|
스크린: | 5.5 인치 터치 스크린 | 배터리: | 7.4V5800mAh |
인쇄 기계: | 인베디드된 써멀 프린터 | 카메라: | 5M 화소 |
카드리더: | 비접촉식, 접촉, 자기 띠 | 색: | 청색 |
강조하다: | 붙박이 프린터와 EMV 안드로이드 포켓용 POS,붙박이 프린터와 PCI 안드로이드 포켓용 POS,EMV POS 안드로이드 단말기 |
제품 설명

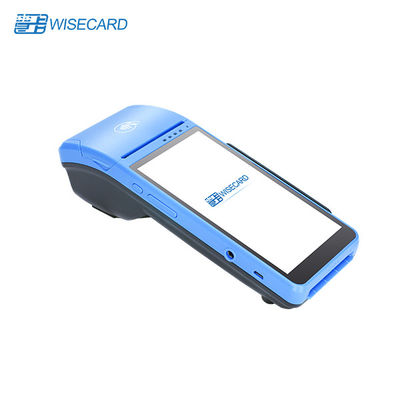

EMV PCI Certified 4G Smart Android POS Terminal with Termal Printer
A Full Touch Screen Smart Mobile POS Terminal
WCT-S8 employs high performance CPU and integrates payment, barcode scanner, and high-speed printer in one body. Large volume battery design makes the performance more excellence.
★ Fashionable Appearance and Friendly UI
Small size with big screen
Fashionable line and elegant appearance
Ergonomic and integrity design study
Along with friendly customize UI
★ Excellent Performance
High Performance CPU, 4 core processors
Supporting 4G communication model
High volume lithium battery, satisfies intensive payment transaction requests.
★ Various Payment Models Support
Support magnetic strip card, financial IC card and various contactless cards
Embodied with 1D&2D barcode scanner
WCT-S8 Android POS Configuration | ||
Type | Product Spec | |
Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
RAM | 1GB / 2GB LPDDR3 | |
FLASH | 8GB / 16GB EMMC | |
OS | Android 7.0 Security Payment OS | |
Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
4G | LTE-FDD : B1/B3/B8 (TBD) | |
TDD-LTE : B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
TDS-CDMA : B34/B39 | ||
EVDO : BC0 | ||
2G | EDGE/GPRS : B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
GPS | GPS | GPS, GLONASS |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
Spectrum | 13.56MHz | |
IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
EMV card | Smart Card | EMV & PBOC Compliant |
MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH | |
Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
Micro Printer | Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*40 mm | |
Effective Printing area | 48mm | |
Speed | Maximum 70mm/sec(480 dot line/sec) | |
Printing resolutions | 8 dots/mm | |
Character | 12*24dots and 24*48 dots | |
Number of columns | 32columns/line | |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
Why choose us? To be sure.
1. Professional: We are a mobile POS device and industry tablet manufacturer with more than 10 years experience.
2. Cost-effective Price: we have the best price, cost-effective, good quality.
3. Customer service: We will handle all your questions, any question just email us or call us, we will try our best to help you out.
4. Long term warranty: We provide 1-year warranty for most of our products.
5. SDK/API for the products: We will offer free SDK/API and technical assistance for your development.
6. Our products have certificates like EMV, PCI,CE, FCC etc.
7. Strong presence in ODM project: We have good experiences of cooperating with the famous companies overseas.
