5.5 Inch Smart POS Terminal , Portable Credit Card Swipe Machine

5.5 Inch Smart POS Terminal , Portable Credit Card Swipe Machine

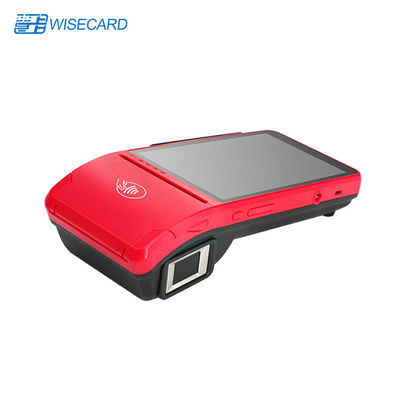

큰 이미지 :  5.5 Inch Smart POS Terminal , Portable Credit Card Swipe Machine

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Wisecard
인증: PCI CE Rohs
모델 번호: S8FA
결제 및 배송 조건:
최소 주문 수량: 교섭할 수 있습니다
가격: negotiable
포장 세부 사항: 박스 당 1대 pc, 통 당 10대 pc
배달 시간: 1-4 주
지불 조건: 전신환
공급 능력: 달 당 10000 세트/세트
상세 제품 설명
프로세서: 4 핵심 암 Cortex-A53 OS: 안드로이드 7 또는 그이상
지문: 아라텍, FBI는 증명했습니다 스크린: 5.5 인치 터치 스크린
배터리: 7.4V5800mAh 통신: 2G / 3G / 4G /wifi, 블루투스
카드리더: 비접촉식, 접촉, 자기 띠 색: 빨강
강조하다:

5.5in Smart POS Terminal

,

bluetooth Smart POS Terminal

,

5.5in portable credit card swipe machine

5.5 Inch Payment Mobile POS Terminal with FBI Certified Fingerprint Reader



1. 5.5 inch capacitive screen, less than 1kg, mainstream size of market mobile devices.
2. With built-in 58mm thermal printer, 70mm/s printing speed, 50km print head span, About 5000 times continuous flip.
3. Built-in battery 5800mAh. work continuously for 25 hours, dark screen standby time of above 18 days, 5500 order printing jobs.
4. 1G RAM+8G (2G+16G) Flash can support 3G, 4G, WiFi, Bluetooth, NFC.
5. 1D bar-code or 2D QR Code quick reading.



WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
