상세 정보 |
|||
프로세서: | 4 핵심 암 Cortex-A53 | OS: | 안드로이드 7 또는 그이상 |
---|---|---|---|
지문: | 맞춰 보시오 그러면 FBI는 증명했습니다 | 스크린: | 5.5 인치 터치 스크린 |
배터리: | 7.4V5800mAh | 인쇄 기계: | 인베디드된 써멀 프린터 |
통신: | 2G / 3G / 4G /wifi, 블루투스 | 카드리더: | 비접촉식, 접촉, 자기 띠 |
강조하다: | FBI Smart POS Terminal,Crossmatch Smart POS Terminal,FBI android POS terminal with printer |
제품 설명

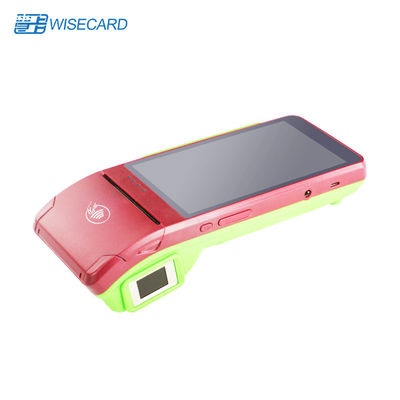

FBI Certified Fingerprint Reader POS Terminal with Touch Screen and Printer
Quick Details:
PCIPTS 5.1Certified, EMV Certified
Android 7.0 Security Payment OS
Supports 4G LTE Wi-Fi, Bluetooth, Contactless/NFC.GPS
FBI Certificated Fingerprint module/5800 mAh Lithiun lon Battery
4PSAM Card Slots,2 SIM Card Slots/5 Mega, CMOS, Supports Barcode
Features:
1. Creative Original Design.
2. Arc design with shell process that conforms to ergonomics, easier to hold with one hand, more modern & more fashionable.
3. 5.5 inch capacitive screen, less than 1kg, mainstream size of market mobile devices.
4. With built-in 58mm thermal printer, 70mm/s printing speed, 50km print head span, About 5000 times continuous flip.
5. Built-in battery 5800mAh. work continuously for 25 hours, dark screen standby time of above 18 days, 5500 order printing jobs.
6. 1G RAM+8G (2G+16G) Flash can support 3G, 4G, WiFi, Bluetooth, NFC.
7. 1D bar-code or 2D QR Code quick reading.
8. FBI certified Fingerprint reader.
WCT-S8 Android POS Configuration | ||
Type | Product Spec | |
Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
RAM | 1GB / 2GB LPDDR3 | |
FLASH | 8GB / 16GB EMMC | |
OS | Android 7.0 Security Payment OS | |
Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
4G | LTE-FDD : B1/B3/B8 (TBD) | |
TDD-LTE : B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
TDS-CDMA : B34/B39 | ||
EVDO : BC0 | ||
2G | EDGE/GPRS : B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
GPS | GPS | GPS, GLONASS |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
Spectrum | 13.56MHz | |
IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
EMV card | Smart Card | EMV & PBOC Compliant |
MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH | |
Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
Micro Printer | Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*40 mm | |
Effective Printing area | 48mm | |
Speed | Maximum 70mm/sec(480 dot line/sec) | |
Printing resolutions | 8 dots/mm | |
Character | 12*24dots and 24*48 dots | |
Number of columns | 32columns/line | |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
FAQ
Q: Accept Sample?
A: Sample is available. We always supply sample to our clients for testing.
Q: Can you accept customized order?
A: Welcome, We have our own hardware factory and component engineer. Please send your own design and logo, we could make it as your idea/design.
Q: How is the quality?
A: We have very strict quality controlling which promises the goods we produced are always of the best quality.
Q: How long is your guarantee period ?
A: 1 year warranty, full responsibility for warranty. We are very confident in our products, if any issue, we will deal with it immediately.
Q: How is the Service?
A: We (wisecard tech) have global after-sales service network.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
