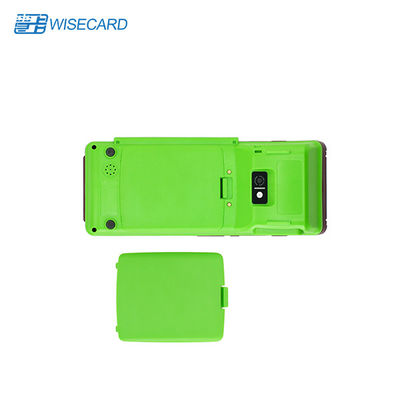

Thermal Printer Inbedded Smart POS Terminal With QR Scanner

최소 주문 수량 : 교섭할 수 있습니다 가격 : negotiable
포장 세부 사항 : 박스 당 1대 pc, 통 당 10대 pc 배달 시간 : 1-4 주
지불 조건 : 전신환 공급 능력 : 달 당 10000 세트/세트
원래 장소: 중국 브랜드 이름: Wisecard
인증: PCI CE Rohs 모델 번호: S8FC

상세 정보

프로세서: 4 핵심 암 Cortex-A53 OS: 안드로이드 7.0 보장 결제 OS
지문: 맞춰 보시오 그러면 FBI는 증명했습니다 배터리: 7.4V5800mAh
인쇄 기계: 인베디드된 써멀 프린터 카메라: 5M 화소
카드리더: 비접촉식, 접촉, 자기 띠 무선 표준 :: LTE-FDD/TDD-LTE/TDCDMA/WCDMA/CDMA2000/EDGE/GPRS
강조하다:

PCI Smart POS Terminal

,

CE Smart POS Terminal

,

PCI android POS terminal with printer

제품 설명

Fingerprint Reader POS Touch Screen POS Terminal with QR Scanner and Printer



WCT-S8 Android smart POS with printer and fingerprint collectin module(optional) , android 7 operating system, 5.5 inch screen touch, super long standby battery capacity is 7.4V 5800 mAh, thermal paper printer, 5 Mega-pixel camera, 2G / 3G / 4G /wifi, bluetooth communication, this fine workmanship and top quality machine is the best choice on the market.
Print receipt every where! With high configuration,S8 can be used widely in Lottery,Express,Mobile-Topup,Taxfree shop,Traffic ticket.



Features:

1. Creative Original Design.
2. Arc design with shell process that conforms to ergonomics, easier to hold with one hand, more modern & more fashionable.
3. 5.5 inch capacitive screen, less than 1kg, mainstream size of market mobile devices.
4. With built-in 58mm thermal printer, 70mm/s printing speed, 50km print head span, About 5000 times continuous flip.
5. Built-in battery 5800mAh. work continuously for 25 hours, dark screen standby time of above 18 days, 5500 order printing jobs.
6. 1G RAM+8G (2G+16G) Flash can support 3G, 4G, WiFi, Bluetooth, NFC.
7. 1D bar-code or 2D QR Code quick reading.

8. FBI certified Fingerprint reader.



WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





FAQ:

1. Are you Manufacturer or Trading Company?

Re: We are professional manufacturer specialized in thermal printer OEM accepted, we have focused on the printers and printing solutions for 8 years.



2. What is the Minimum Order Quantity of thermal printer?

Re: We have no limit for MOQ, so you can even buy only 1 piece, Of course we can offer you a better price for large quantity.



3. Which Delivery Method can i choose?

Re: We accept all kinds of shipping ways including: express, air, sea, or pick up by customers' rep..



4. Can you offer driver/SDK for the printers?

Re: Yes, we are supplying all windows driver, Win 9X/Win ME/Win 2000/WinNT/WinXP/Vista, and compatible with EPSON, SAMSUNG.



5. What language do the printers support?

Re: Our printer can support multiple language, e.g. English, Spanish, Arabic, Persian, Italian, Portuguese, French, Danish, Polish, Swedish, Vietnamese, German, Chinese, etc.(Customizable)



6. Can I get the product with my request?

Re: OEM and ODM products is available for you, as long as order meet the MOQ. We have engineers for logo and products design, it only needs a little extra cost.



7. What is the delivery date if I place the order?

Re: Most of the product are in stock, and can be sent to you within 3 days after payment received, bulk qty lead time is about 5-15 days



8. Do you support technical support?

Re: We supply free technical service, also Manual and Driver.
