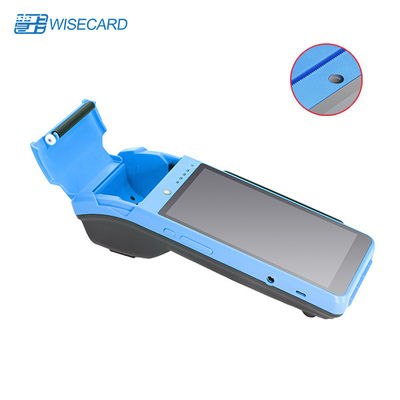

Dual Camera Handheld Mobile POS Terminal For Retail

최소 주문 수량 : 교섭할 수 있습니다 가격 : 협상 가능
포장 세부 사항 : 박스 당 1대 pc, 통 당 10대 pc 배달 시간 : 1-4 주
지불 조건 : 전신환 공급 능력 : 달 당 10000 세트/세트
원래 장소: 중국 브랜드 이름: Wisecard
인증: PCI CE Rohs 모델 번호: T90

상세 정보

프로세서: 4 핵심 암 Cortex-A53 OS: 안드로이드 7 또는 그이상
스크린: 5.5 인치 터치 스크린 배터리: 7.4V5800mAh
후방 사진기: 8M 화소 통신: 2G / 3G / 4G /wifi, 블루투스
카드리더: 비접촉식, 접촉, 자기 띠 색: 청색
강조하다:

OEM handheld mobile POS terminal

,

PCI handheld mobile POS terminal

,

Rohs mobile card swipe machine

제품 설명

Dual Camera POS Machine Handheld Payment Android POS Terminal for Retail



Android POS Terminal Key Features:
- Connecitivties: WIFI, 4G, 3G, GPRS, SMS, USSD, STK, Bluetooth.

- CPU:1.4GHz Qualcomm Quad-Core Cortex™-A7
- Android OS: 7.1
- Free App for online ordering, Top up, Car Parking, Online Shopping, etc. (customizable).
- 1GB RAM, 8 GB flash (2+16 optional)
- Rechargeable Li-ion battery lasts 8 -10 days when standby
- NFC, magnetic/smart card reader, Camera(optional)
- Free SDK
- OEM & ODM accepted
- Carrying bag (optional)
- Supports printing via bluetooth, cloud printing, clipboard printing, etc.



WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



FAQ

Q1:What about the Warranty?
We provide one year warranty for main device as well as 24 hours online service to help you out.
Q2:Do your products support customized?
Yes, we provide OEM service. Our standard products can be branded according to your needs. The color tones, logo silkscreen can all be customized to give the products in line with your company image and style.
Q3:How do we proceed an order?
It is much appreciated if you could tell us you exact requirements/specification, then we will send a proforma invoice for you to make payment. Payment via Western Union T/T.
Q4:How to do the freight calculation?
Shipment charges are calculation according to the higher of actual or volumetric weight and any shipment may be re-weighed and remeasured by the carrier to confirm this calculation.
Q5:How do you offer?
We supply both hardware and software of POS system.We have POS terminals with Linux,Android systems, Intelligent speakers, QR Code-based Payment Device,etc.



Why choose us

1. Factory direct sale, lowest price and OEM services accept

2. 100% all check, quality assurance

3. Professional team, fashion design and strong development capability

4. Full quakeproof, waterproof, dustproof and anti-knock design

5. Suitable for all kind of industrial environment

6. Independent intellectual property rights



Dual Camera Handheld Mobile POS Terminal For Retail 0Dual Camera Handheld Mobile POS Terminal For Retail 1



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.



Dual Camera Handheld Mobile POS Terminal For Retail 2
