제품 상세 정보:
결제 및 배송 조건:
|
| 애플리케이션: | 은행 지점 | CPU: | 인더스트리얼 PC 핵심 i 시리즈 |
|---|---|---|---|
| 디스플레이: | 19 인치 TFT LED 터치 스크린 | EPP: | PCI 4.0은 16개 버튼을 증명했습니다 |
| 돋을새김: | 지원 압인과 후방 상품 주문, 팁핑 | 카메라: | 720P |
| 카드리더: | 비접촉식, 접촉, 자기 띠 | 지문: | 전기 용량 지문 스캐너 |
| 강조하다: | Self Service Smart Teller Machine,Rohs Smart Teller Machine,Bank branch video teller machine |
||
Self Service Kiosk Video Teller Machine Touchscreen Card Reader Printer Scanner

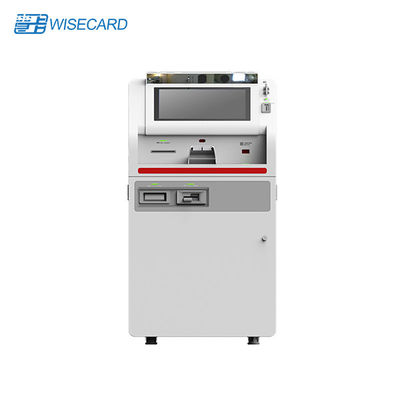

WCT-260T is the newest smart self service bank kiosk designed to improve branch efficiency and enhance user experience. Combined with Wisecard smart banking system and machine control platform it builds up a turn-key smart branch solution for commercial banks.
Financial institutions, service bureaus, retailers, governments and other card issuers can now issue in a highly secure manner personalized embossed cards on demand, either individually, or in low-volume batches with our instant issuance system. This lobby system empowers Banks to enhance their customer experience, or implement new forms of customer service provision.
Wisecard Smart Banking Solution
The Wisecard Smart Banking solution is highly compatible with numerous of CMS packages and Third Party systems.
Additionally we offer a Software Development Kit(SDK)to implement customizations inhouse,or customization service to meet a bank' s specific requirements.
FEATURES
SMART
Smart Terminals
Smart Kiosks
Smart Service
EFFICENCY
Better Efficiency
Cost Saving
High Performance
UNIFIED
Unified Platform
Unified Interface
Unified Business Process
PERSONALIZED
Personalized Design
Personalized Service
Personalized Culture
| Function Description | |
| Self-service card replacement | Support replacing mag-stripe cards into chip cards with the same card number. The old card is stored in a separate compartment and managed safely |
| Enrollment and information collection | ID card based enrollment with collection of customer data and its verification via internet is supported. The Device is equipped to collect the customer’s photograph, fingerprint data, electronic signature and more. |
| Self-Service interface for basic financial transactions | Many common workflows for inquiries, payment transfers, top-up payment, electronic signing of contracts or agreements (for as E-banking, mobile banking) and more. |
| Intermediate agent business | Securities, funds, foreign exchange, financial products marketing; |
| Utility Payments (water, electricity, gas, mobile phone), Payments to urban transport cards, ETC, medical cards top-up and etc. | |
| Self-service card issuance | Self-Service Issuance of cards for banking or other high security cards. |
| Complete range of flat and embossed printing of multi-process cards including magnetic stripe, contact IC and contactless IC cards can be issued within 60 seconds. | |
| Supports instant debit and credit card dispensing; | |
| Support of re-issuance of highly customized (DIY) cards of replacement or lost cards. | |
| Self-service U-key dispensing (optional) | Support U-key, Password Manager dispensing, scanning of bar-codes, separately lockable card cassettes |
| WCT-260T Smart Teller Machie Specification | |
| Module | Technical Specifications |
| Cabinet & Accessories | Hard, thick and non-deforming materials |
| Surface treatment process: rust-proof, antiseptic, anti-friction | |
| Neat internal wiring, using drag track and front door for easy maintenance | |
| Independent ventilation system in line with bank requirements | |
| SIU | Sensors and Indicators Unit |
| Industrial PC | CPU: Core i series or equivalent technical indicators |
| Hard drive: 500G | |
| Memory: 4G | |
| Display | Display: 19'' 4:3 TFT LED |
| Resolution: 1024*768 (inclusive) or more | |
| Anti-glare (film): left and right viewing angle < = 30 degree | |
| Touch Screen | Touch Screen: 19''4:3 |
| Resolution: 4096*4096 | |
| Special requirements: anti-dust/ riot/ scratch | |
| Receipt Printer | Support full graphic printing |
| Width: 80mm | |
| Chinese font: Arial or traditional; English font | |
| Support GB 18030 character set and GBK character set | |
| Black spot recognition | |
| Continuous paper printing, automatic cutting, to provide semi-cut/ full cut function | |
| EPP | PCI 4.0 certified |
| 16 buttons | |
| Flat Card Printer (with card reader) |
Support duplex printing |
| PASS BCTC test and certification | |
| Support PBOC, EMV standards | |
| Six card hoppers with independent lock | |
| Print: picture, photo, name, validity, CVV and etc | |
| Six card-dispensing box, total capacity are: 600 pcs flat card | |
| Double card-collecting box: total capacity: 150 pcs flat card | |
| Embosser | Support Embossing and rear indent, Tipping |
| Pass BCTC test and certification | |
| Support PBOC, EMV standars | |
| Camera | Support concealment |
| Support 720P | |
| ID Card Reader | Electrically load in card |
| Meet the requirements of the Ministry of Public Security | |
| Compulsory return ID card | |
| Fingerprint Scanner | Capacitive |
| Detection of dermis | |
| Contactless Card Reader | Secure module avaliable |
| Follow ISO/ IEC 14443 standard | |
| Support EMV standard requirements | |
| Power fail safeguard function for the data stored in the card reader | |
| Human Sensor | Can sense that customer pis standing in front |
| OS | WIN7, WIN10 or other OS |
| Digital Pen | Handwriting fidelity; Integrated handwritten singnature board+electromagnetic induction pen |
| Bar Code Scanner | Support both one dimension and two-dimension code (QR code) |
Packaging & Delivery
Port: shenzhen shekou seaport
Lead Time :
| Quantity(Units) | 1 - 10000 | >10000 |
| Est. Time(days) | 30 | To be negotiated |
Supply Ability: 1000 Unit/Units per Day
