금융 기관을 위한 비접촉식 광고 POS 기계 지지체 OTG
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
| 최소 주문 수량 : | 교섭할 수 있습니다 | 가격 : | 협상 가능 |
|---|---|---|---|
| 포장 세부 사항 : | 박스 당 1대 pc, 통 당 10대 pc | 배달 시간 : | 1-4 주 |
| 지불 조건 : | 전신환 | 공급 능력 : | 달 당 10000 세트/세트 |
| 원래 장소: | 중국 | 브랜드 이름: | Wisecard |
|---|---|---|---|
| 인증: | PCI CE Rohs | 모델 번호: | T90FO |
|
상세 정보 |
|||
| 스크린: | 5.5 인치 터치 스크린 | 배터리: | 7.4V5800mAh |
|---|---|---|---|
| 프린터: | 인베디드된 써멀 프린터 | 정면 사진기: | 2M 화소 |
| 카드리더: | 비접촉식, 접촉, 자기 띠 | 색: | 맞춤화될 수 있습니다 |
| 후방 사진기: | 8Mega 화소, CMOS, AF, QR/2D 바코드, JPEG 사진, 비디오. | NFC 표준: | ISO14443 타입 ３등공사 (ISO 18092 NFC, 미페어, 펠리카 지원 |
| 강조하다: | EMV 무선 휴대장치 포스 터미날,로에스 PCI 현명한 지불 터미널,안드로이드 7.0 QR 코드 포스 터미날 |
||
제품 설명

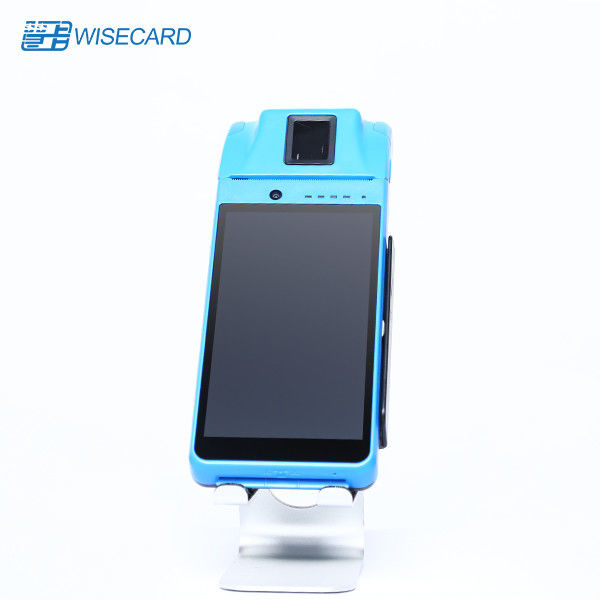

Hot sale WCT-T90 Android 7.0 handheld PDA Machines Mobile Touch screen POS System with Printer
WCT-T90FO is a highly secure portable terminal with dedicated secure element which is developed targeting for loT and payment industry. WCT-T90FO is powered with Android operating system, which enables super-fast processing of multiple applications. With fully range of connectivity options. WCT-T90FO is capable to meeting various purposes for the transactions and with delicate touch display to maximize the customer experience.
| WCT-T90FO Android POS Configuration: | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC, TF Card Supported | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (Deep-Cover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD: B1/B3/B8 (TBD) | |
| TDD-LTE: B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8 | |
| TDS-CDM: B34/B39 | ||
| EVDO: BC0 | ||
| 2G | EDGE/GPRS: B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volume up, Volume down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 210mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
|
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
||
Quick Detail:
FAQ
Can you provide application software for the hardware?
We provide free SDK and User manual of all API to support your development or programming.
Does the device have the language default as English?
Of course, our device supports multi-language such as English, Spanish, Portuguese ,French, German, Polish and so on.
Can your device install the Android Apps that our customers provide?
No problem. Just send us your Apps and then our Engineers can do that for you.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
