NFC 독자 로열티 프로그램 시스템과 와이파이 포켓용 현명한 포스 터미날
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
| 최소 주문 수량 : | 교섭할 수 있습니다 | 가격 : | negotiable |
|---|---|---|---|
| 포장 세부 사항 : | 박스 당 1대 pc, 통 당 10대 pc | 배달 시간 : | 1-4 주 |
| 지불 조건 : | 전신환 | 공급 능력 : | 달 당 10000 세트/세트 |
| 원래 장소: | 중국 | 브랜드 이름: | Wisecard |
|---|---|---|---|
| 인증: | PCI CE Rohs | 모델 번호: | S8 |
|
상세 정보 |
|||
| 프로세서: | MTK MT8735 | USIM 카드 슬롯: | 4 PSAM 슬롯, 2 SIM 슬롯 |
|---|---|---|---|
| 터치 패널: | 유능한 G+F+F, 전기 용량 색 터치, 다중 터치, 서명 유능한, 비디오 | 물리적 키: | 전원 켬 / 꺼짐 상태, 위로 부피, 아래 부피. |
| 가상 키패드: | 홈 키, 기능 키, 텐 키 | 후방 사진기: | 8Mega 화소, CMOS, AF, QR/2D 바코드, JPEG 사진, 비디오. |
| NFC 표준: | ISO14443 타입 ３등공사 (ISO 18092 NFC, 미페어, 펠리카 지원) | NFC 스펙트럼: | 13.56MHz |
| 강조하다: | EMV 무선 휴대장치 포스 터미날,로에스 PCI 현명한 지불 터미널,안드로이드 7.0 QR 코드 포스 터미날 |
||
제품 설명

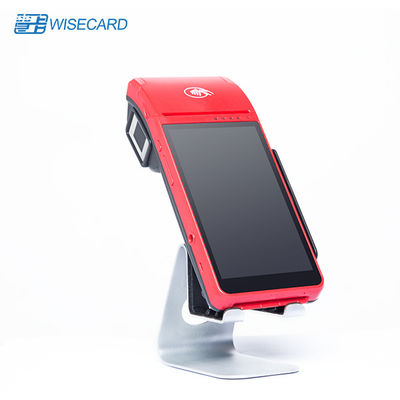

Printer Nfc Mobile Card Payment Wireless 4G Android Handheld Pos Terminal
★ High-speed Printer
The thermal Printer ensures clear readability 58mm printing with printing speed increased by 10%.
★ 5800mAH Large Battery Super Endurance
WCT-S8 comes with a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
★ Multiple card slots, 4 PSAM and 2 SIM Slots
Multiple card slots for PSAM and SIM cards brings more options for security and connection.
| WCT-S8 Android POS Configuration | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) | |
| TDD-LTE : B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
| TDS-CDMA : B34/B39 | ||
| EVDO : BC0 | ||
| 2G | EDGE/GPRS : B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) | ||
FAQ
Q: What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T.
Q: How long is the warranty time?
A: As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.
Q: Accept Sample?
A: Sample is available. We always supply sample to our clients for testing.
Q: Can you accept customized order?
A: Welcome, We have our own hardware factory and component engineer. Please send your own design and logo, we could make it as your idea/design.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
