제품 상세 정보:
결제 및 배송 조건:
|
| 프로세서: | MTK MT8735 | USIM 카드 슬롯: | 4 PSAM 슬롯, 2 SIM 슬롯 |
|---|---|---|---|
| 터치 패널: | 유능한 G+F+F, 전기 용량 색 터치, 다중 터치, 서명 유능한, 비디오 | 물리적 키: | 전원 켬 / 꺼짐 상태, 위로 부피, 아래 부피. |
| 가상 키패드: | 홈 키, 기능 키, 텐 키 | 후방 사진기: | 8Mega 화소, CMOS, AF, QR/2D 바코드, JPEG 사진, 비디오. |
| Ram: | 1GB/2GB LPDDR3 | 섬광: | 8GB / 16GB EMMC |
| 강조하다: | EMV 무선 휴대장치 포스 터미날,로에스 PCI 현명한 지불 터미널,안드로이드 7.0 QR 코드 포스 터미날 |
||

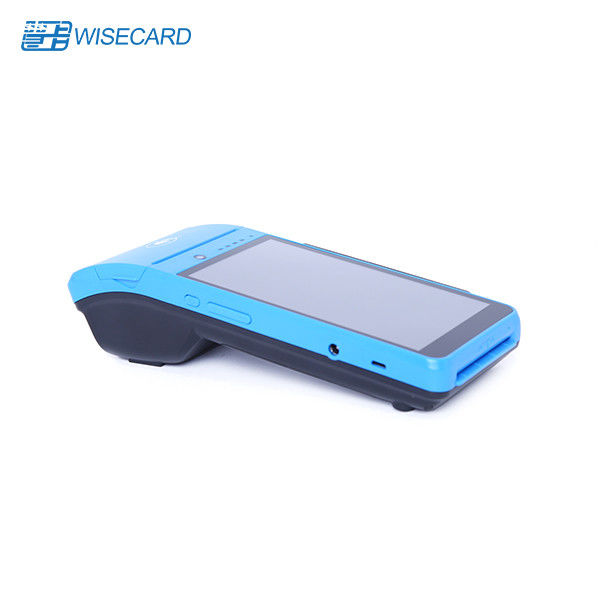

Android POS payment touch screen machine wireless NFC payment retail Terminal With Printer
WCT-T90 Android smart POS with printer and fingerprint collecting module(optional) , android 7 operating system, 5.5 inch screen touch, super long standby battery capacity is 7.4V 5800 mAh, thermal paper printer, 5 Mega-pixel camera, 2G / 3G / 4G / wifi, bluetooth communication, this fine workmanship and top quality machine is the best choice on the market.
Print receipt every where! With high configuration, S8 can be used widely in Lottery, Express, Mobile-Topup, Taxfree shop, Traffic ticket.
More Options
Optional functions adapt to your actual needs.
such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.
7.4V/5000mAH Large Battery Super Endurance
WCT-T90 can support a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
*The standard battery is 7.4V / 2500mAH.
| WCT-T90 Android POS Configuration | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) | |
| TDD-LTE : B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
| TDS-CDMA : B34/B39 | ||
| EVDO : BC0 | ||
| 2G | EDGE/GPRS : B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) | ||
Trade conditions
1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...
2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.
3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.
4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.
5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.
Quality guarantee:
1. All our products have one year guarantee from the shipping date
2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost
3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
Custom design is welcome :
Customized projects accepted including software and hardware.
Don't hesitate to share your idea with us, we have experienced engineer team and always do our best to help client's project.
FAQ
Q: Does your stand secured?
A: Yes, our products are durable metal construction. We have styles with key lock and with screw locked. Please see our brochure for more details.
Q: Would it be possible to order a sample of products?
A: Yes, definitely no problem to order one sample at first before bulk order.
Q: I would like to order custom tablet stand. Do you manufacture custom design tablet stand?
A: Yes, we have strong R&D center who can custom creative design for you. Please offer us your requirements.
Q: Is it possible to have our logo printed on top of it?
A: Yes, it is no problem to print logo on top of the tablet enclosure. Please offer us the logo picture and offer us international Pan-tone color code for the logo color.
Q: Are you a manufacturer?
A: Yes, we have our own factory with advanced facilities.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
