NFC 독자 로열티 프로그램 시스템과 와이파이 포켓용 현명한 포스 터미날
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
상세 정보 |
|||
프로세서: | MTK MT8735 | USIM 카드 슬롯: | 4 PSAM 슬롯, 2 SIM 슬롯 |
---|---|---|---|
터치 패널: | 유능한 G+F+F, 전기 용량 색 터치, 다중 터치, 서명 유능한, 비디오 | 물리적 키: | 전원 켬 / 꺼짐 상태, 위로 부피, 아래 부피. |
전지 성능: | 3.7V, 5800mAh | 배터리 충전기: | 5V/2A |
USB 기준: | USB 유형 C 2.0 | 다릅니다: | 충전용 배터리, OTG 지원 |
강조하다: | 5.5 Inch Handheld Pos Machine,Handheld Pos Machine Android 7.0,3G 4G Mobile Pos Terminal |
제품 설명

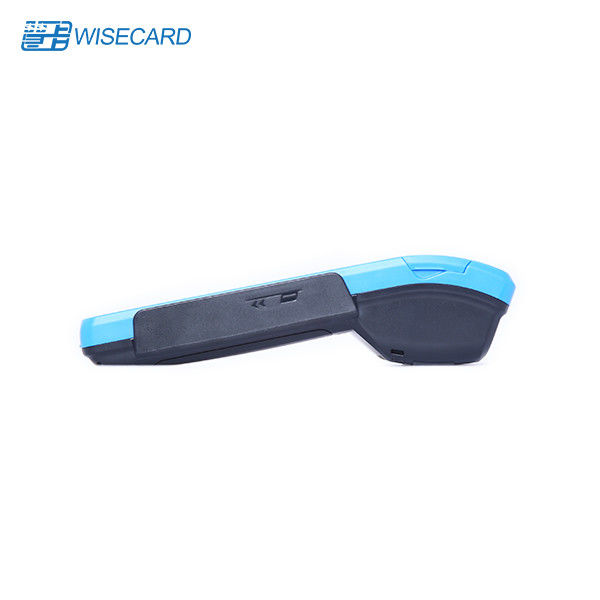

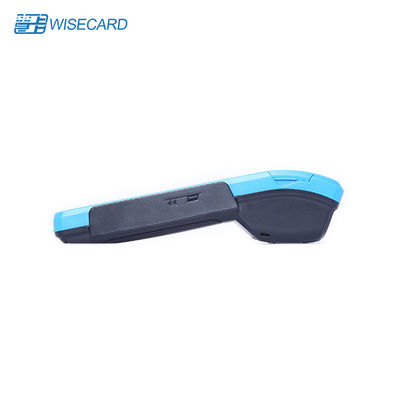

5.5 inch handheld pos machine android 7.0 system 3G 4G touch screen mobile pos terminal with printer
WCT-T90 Android smart POS with printer and fingerprint collecting module(optional) , android 7 operating system, 5.5 inch screen touch, super long standby battery capacity is 7.4V 5800 mAh, thermal paper printer, 5 Mega-pixel camera, 2G / 3G / 4G / wifi, bluetooth communication, this fine workmanship and top quality machine is the best choice on the market.
More Options
Optional functions adapt to your actual needs.
such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.
7.4V/5000mAH Large Battery Super Endurance
WCT-T90 can support a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
*The standard battery is 7.4V / 2500mAH.
WCT-T90 Android POS Configuration | ||
Type | Product Spec | |
Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
RAM | 1GB / 2GB LPDDR3 | |
FLASH | 8GB / 16GB EMMC | |
OS | Android 7.0 Security Payment OS | |
Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
4G | LTE-FDD : B1/B3/B8 (TBD) | |
TDD-LTE : B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
TDS-CDMA : B34/B39 | ||
EVDO : BC0 | ||
2G | EDGE/GPRS : B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
GPS | GPS | GPS, GLONASS |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
Spectrum | 13.56MHz | |
IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
EMV card | Smart Card | EMV & PBOC Compliant |
MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH | |
Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
Micro Printer | Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*40 mm | |
Effective Printing area | 48mm | |
Speed | Maximum 70mm/sec(480 dot line/sec) | |
Printing resolutions | 8 dots/mm | |
Character | 12*24dots and 24*48 dots | |
Number of columns | 32columns/line | |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
Trade conditions
1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...
2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.
3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.
4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.
5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.
Quality guarantee:
1. All our products have one year guarantee from the shipping date
2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost
3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
Why choose us
OEM/ODM
Strong Factory Ability & Professional design team.
WORKSHOP
Clean workshop, Profes- sional & Efficient workers.
ADVANCED EQUIPMENT
Adcanced equipment makes security products, quality is our key belief.
ATTENTION TO DETAIL
Every detail adheres to professional standards
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
