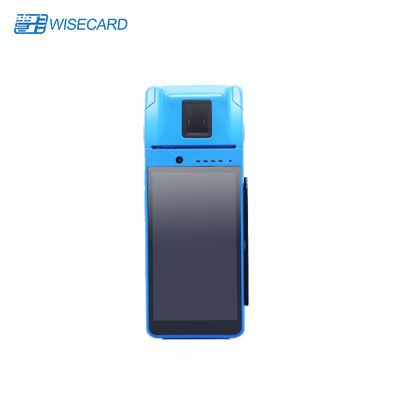

QR 코드 스캐너와 5800mAh 울퉁불퉁한 Pda 무선 전신 안드로이드 POS 4G LTE

최소 주문 수량 : 교섭할 수 있습니다 가격 : 협상 가능
포장 세부 사항 : 박스 당 1대 pc, 통 당 10대 pc 배달 시간 : 1-4 주
지불 조건 : 전신환 공급 능력 : 달 당 10000 세트/세트
원래 장소: 중국 브랜드 이름: Wisecard
인증: PCI CE Rohs 모델 번호: T90FO

상세 정보

스크린: 5.5 인치 터치 스크린 배터리: 7.4V5800mAh
프린터: 인베디드된 써멀 프린터 정면 사진기: 2M 화소
카드리더: 비접촉식, 접촉, 자기 띠 색: 맞춤화될 수 있습니다
논문: 열 롤 페이퍼 (표준) 57*40 밀리미터 효과적인 인쇄 영역: 48mm
강조하다:

울퉁불퉁한 Pda 무선 전신 안드로이드 POS

,

5800mAh 무선 안드로이드 POS

,

4G LTE 포켓용 안드로이드 POS

제품 설명

Hot sale WCT-T90 Android 7.0 handheld PDA Machines Mobile Touch screen POS System with Printer



★ Android 7.0 OS and Quad-Core

The performance of WCT-S8 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.

★ Smart Payments All In One Machine

WCT-S8 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.

★ High-speed Printer

The thermal Printer ensures clear readability 58mm printing with printing speed increased by 10%.

★ 5800mAH Large Battery Super Endurance

WCT-S8 comes with a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.





WCT-T90FO Android POS Configuration:
Type Product Spec
Platform Processor MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz)
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (Deep-Cover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD: B1/B3/B8 (TBD)
TDD-LTE: B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8
TDS-CDM: B34/B39
EVDO: BC0
2G EDGE/GPRS: B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volume up, Volume down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support)
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





Quick Detail:

  • More than 9 years manufacturing experiences and products applied /placed more than 180 countries
  • Upgradable functions available
  • Flexible Modification to fit customers requirements
  • In-door or out-door optional



FAQ



Q: Can you make OEM or ODM for products?

A: OEM and ODM products is available for customer, as long as customer meet the MOQ. Also we have engineers for logo and products design for customers.



Q:What about delivery time?

A: Samples and small order within 5 working days; bulk order delivery kindly check with seller.



Q: What about MOQ?

A: For pos terminal, we can accept sample order firstly, so there is not limit for MOQ. For label paper/receipt paper ect.






QR 코드 스캐너와 5800mAh 울퉁불퉁한 Pda 무선 전신 안드로이드 POS 4G LTE 0QR 코드 스캐너와 5800mAh 울퉁불퉁한 Pda 무선 전신 안드로이드 POS 4G LTE 1QR 코드 스캐너와 5800mAh 울퉁불퉁한 Pda 무선 전신 안드로이드 POS 4G LTE 2



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.

QR 코드 스캐너와 5800mAh 울퉁불퉁한 Pda 무선 전신 안드로이드 POS 4G LTE 3
