NFC 독자 로열티 프로그램 시스템과 와이파이 포켓용 현명한 포스 터미날
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
| 최소 주문 수량 : | 교섭할 수 있습니다 | 가격 : | 협상 가능 |
|---|---|---|---|
| 포장 세부 사항 : | 박스 당 1대 pc, 통 당 10대 pc | 배달 시간 : | 1-4 주 |
| 지불 조건 : | 전신환 | 공급 능력 : | 달 당 10000 세트/세트 |
| 원래 장소: | 중국 | 브랜드 이름: | Wisecard |
|---|---|---|---|
| 인증: | PCI CE Rohs | 모델 번호: | T90 |
|
상세 정보 |
|||
| 스크린: | 5.5 인치 터치 스크린 | 배터리: | 7.4V5800mAh |
|---|---|---|---|
| 프린터: | 인베디드된 써멀 프린터 | 카드리더: | 비접촉식, 접촉, 자기 띠 |
| 색: | 맞춤화될 수 있습니다 | 후방 사진기: | 8Mega 화소, CMOS, AF, QR/2D 바코드, JPEG 사진, 비디오. |
| NFC 표준: | ISO14443 타입 ３등공사 (ISO 18092 NFC, 미페어, 펠리카 지원 | 램: | 1GB / 2GB LPDDR3 |
| 보안 처리기: | 격언 MAX32555 (딥코버 보안 마이크로컨트롤러) | ||
| 강조하다: | MTK MT8735 안드로이드 POS 기계,8mega 화소 안드로이드 POS 기계,58 밀리미터 프린터 안드로이드 포스 터미날 |
||
제품 설명

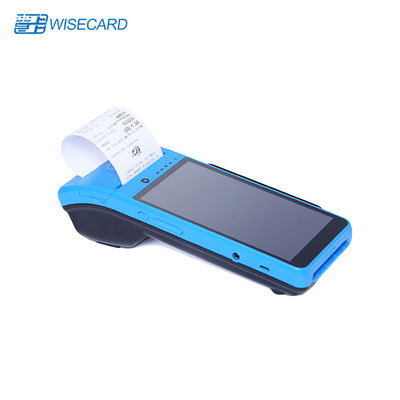

Smart 4G All In One Pos Handheld Mobile Touch Screen Android POS+System With 58mm Printer 2D Barcode Scanner
A Full Touch Screen Smart Mobile POS Terminal
WCT-T90 Handheld Mobile NFC Smart Android POS Terminal, PCI and EMV Certificated, with FBI Verified Fingerprint Module and Barcode&QR Code Scanner.
| WCT-T90FO Android POS Configuration: | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC, TF Card Supported | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (Deep-Cover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD: B1/B3/B8 (TBD) | |
| TDD-LTE: B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8 | |
| TDS-CDM: B34/B39 | ||
| EVDO: BC0 | ||
| 2G | EDGE/GPRS: B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volume up, Volume down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 210mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
|
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
||
Quick Detail:
FAQ
Q: Does your stand secured?
A: Yes, our products are durable metal construction. We have styles with key lock and with screw locked. Please see our brochure for more details.
Q: Would it be possible to order a sample of products?
A: Yes, definitely no problem to order one sample at first before bulk order.
Q: I would like to order custom tablet stand. Do you manufacture custom design tablet stand?
A: Yes, we have strong R&D center who can custom creative design for you. Please offer us your requirements.
Q: Is it possible to have our logo printed on top of it?
A: Yes, it is no problem to print logo on top of the tablet enclosure. Please offer us the logo picture and offer us international Pan-tone color code for the logo color.
Q: Are you a manufacturer?
A: Yes, we have our own factory with advanced facilities.
Place of Origin:
Guangdong, China
Brand Name:
WCT
Warranty:
1 years
Certificate:
CE/CCC/FCC/ROHS/ISO9001
OS:
Window and Android option
Service:
ODM / OEM
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
