상세 정보 |
|||
스크린: | 5.5 인치 터치 스크린 | 배터리: | 7.4V5800mAh |
---|---|---|---|
프린터: | 인베디드된 써멀 프린터 | 카드리더: | 비접촉식, 접촉, 자기 띠 |
색: | 맞춤화될 수 있습니다 | 후방 사진기: | 8Mega 화소, CMOS, AF, QR/2D 바코드, JPEG 사진, 비디오. |
NFC 표준: | ISO14443 타입 3등공사 (ISO 18092 NFC, 미페어, 펠리카 지원 | 램: | 1GB / 2GB LPDDR3 |
보안 처리기: | 격언 MAX32555 (딥코버 보안 마이크로컨트롤러) | ||
강조하다: | Android 7.0 Handheld Pos Terminal,4 PSAM Handheld Pos Terminal,58mm Thermal Printer Mobile Payment Terminal |
제품 설명

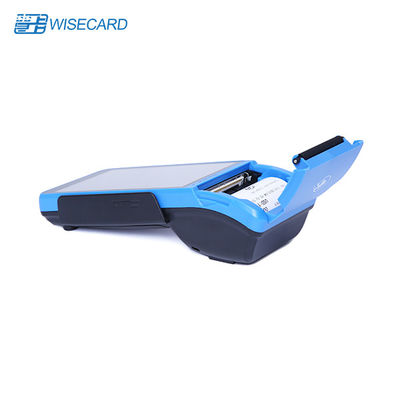

Android 7.0 Handheld Pos And Smart Computer Integrated 58mm Thermal Printer Supports Multi-Language
★ 5800mAH Large Battery Super Endurance
WCT-T90 comes with a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
★ Multiple card slots, 4 PSAM and 2 SIM Slots
Multiple card slots for PSAM and SIM cards brings more options for security and connection.
★ Elastic Wrist Strap
Considering the need to move frequently, the elastic wrist strap design of the TPS320 can hold the product steadily and prevents falls.
★ More Options
Optional functions adapt to your actual needs, such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.
★ Applications
WCT-T90 POS Machine can be used for payment in quite scenarios: Retail Stores; Mobile Charges; Retail Management; Parking Charges Supermarket; Utilities; Lotteries.
WCT-T90 Android POS Configuration: | ||
Type | Product Spec | |
Platform | Processor | MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz) |
RAM | 1GB / 2GB LPDDR3 | |
FLASH | 8GB / 16GB EMMC, TF Card Supported | |
OS | Android 7.0 Security Payment OS | |
Security Processor | MAXIM MAX32555 (Deep-Cover Secure microcontroller) | |
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
4G | LTE-FDD: B1/B3/B8 (TBD) | |
TDD-LTE: B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8 | |
TDS-CDM: B34/B39 | ||
EVDO: BC0 | ||
2G | EDGE/GPRS: B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
GPS | GPS | GPS, GLONASS |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable | |
Keypad | Physical key | Power ON/OFF, Volume up, Volume down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
NFC | Standard | ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support) |
Spectrum | 13.56MHz | |
IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
EMV card | Smart Card | EMV & PBOC Compliant |
MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH | |
Size and Weigt | Dimension and Weight | 210mm*85mm*53mm, 480g with battery |
Micro Printer | Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*40 mm | |
Effective Printing area | 48mm | |
Speed | Maximum 70mm/sec(480 dot line/sec) | |
Printing resolutions | 8 dots/mm | |
Character | 12*24dots and 24*48 dots | |
Number of columns | 32columns/line | |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
