Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
상세 정보 |
|||
애플리케이션: | 은행 지점 | 표준: | EMV, PBOC, PCI |
---|---|---|---|
CPU: | 인더스트리얼 PC 핵심 i 시리즈 | 디스플레이: | 19 인치 TFT LED 터치 스크린 |
EPP: | PCI 4.0은 16개 버튼을 증명했습니다 | 카드프린터: | 카드 판독기와 침판 빗질기 프린터 |
돋을새김: | 지원 압인과 후방 상품 주문, 팁핑 | 카메라: | 720P |
카드리더: | 비접촉식, 접촉, 자기 띠 | 지문: | 전기 용량 지문 스캐너 |
강조하다: | Bank ATM automated teller machine,Smart ATM automated teller machine,EMV public bank ATM machine |
제품 설명

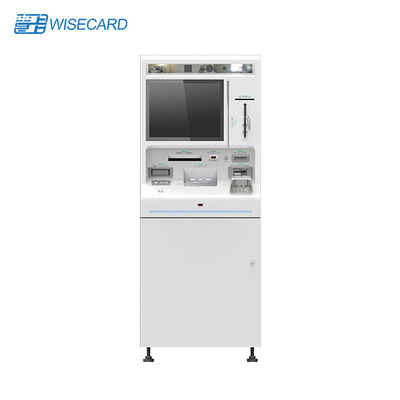

Bank Auto Teller Machine Cashless Payment Kiosk STM Card Dispenser Reader
Kiosk with Instant Card Issuance, A Lobby Instant Card Issuance System
On-demand brilliant and highly secure card issuance
★ Minimizes Card Scheme operating expenses, reduce per-card costs, reduces dormant, or inactive cards
★ Reduced Security concerns and shipping costs due to shipment of blank cards to Bank branches
★ Instant Issuance of personalized cards, even with custom picture
★ Instant and painless replacement of expired or lost cards
★ Convenient front-facing single card input/output slot for easy operation
★ Rich Selection of Personalization Processes
Embossing
Indent Printing Front & Back sides
Magnetic stripe encoding
Chip Encoding (contact & contactless)
Optional direct-to-card color printing
★ Easy Deployment Form Factor for Lobby Environment: Small Foot Print: W:660 x D:770 x H:1200mm³ equivalent to a Lobby ATM foot print.
WCT-260T Smart Teller Machie Specification | |
Module | Technical Specifications |
Cabinet & Accessories | Hard, thick and non-deforming materials |
Surface treatment process: rust-proof, antiseptic, anti-friction | |
Neat internal wiring, using drag track and front door for easy maintenance | |
Independent ventilation system in line with bank requirements | |
SIU | Sensors and Indicators Unit |
Industrial PC | CPU: Core i series or equivalent technical indicators |
Hard drive: 500G | |
Memory: 4G | |
Display | Display: 19'' 4:3 TFT LED |
Resolution: 1024*768 (inclusive) or more | |
Anti-glare (film): left and right viewing angle < = 30 degree | |
Touch Screen | Touch Screen: 19''4:3 |
Resolution: 4096*4096 | |
Special requirements: anti-dust/ riot/ scratch | |
Receipt Printer | Support full graphic printing |
Width: 80mm | |
Chinese font: Arial or traditional; English font | |
Support GB 18030 character set and GBK character set | |
Black spot recognition | |
Continuous paper printing, automatic cutting, to provide semi-cut/ full cut function | |
EPP | PCI 4.0 certified |
16 buttons | |
Flat Card Printer (with card reader) |
Support duplex printing |
PASS BCTC test and certification | |
Support PBOC, EMV standards | |
Six card hoppers with independent lock | |
Print: picture, photo, name, validity, CVV and etc | |
Six card-dispensing box, total capacity are: 600 pcs flat card | |
Double card-collecting box: total capacity: 150 pcs flat card | |
Embosser | Support Embossing and rear indent, Tipping |
Pass BCTC test and certification | |
Support PBOC, EMV standars | |
Camera | Support concealment |
Support 720P | |
ID Card Reader | Electrically load in card |
Meet the requirements of the Ministry of Public Security | |
Compulsory return ID card | |
Fingerprint Scanner | Capacitive |
Detection of dermis | |
Contactless Card Reader | Secure module avaliable |
Follow ISO/ IEC 14443 standard | |
Support EMV standard requirements | |
Power fail safeguard function for the data stored in the card reader | |
Human Sensor | Can sense that customer pis standing in front |
OS | WIN7, WIN10 or other OS |
Digital Pen | Handwriting fidelity; Integrated handwritten singnature board+electromagnetic induction pen |
Bar Code Scanner | Support both one dimension and two-dimension code (QR code) |
Instant changing card with same card number
Instant personalized DIY card printing
(make new card with personalized picture/card number on spot)
Print and dispenser card according to spot customer' s needs(reduce sleep / inactive card)
Instant lost card replacement
Printing flat & embossed card within 60S
(debit card credit card, social security card, health card, business card, joint name card... )
Powerful capacity: 6 locked built in replaceable card cassette(600 cards)and2reject/old card collection box(150 cards)
Easy deployment: lobby, small floor space(66*77*120cm)
We will suit your particular simple self payment needs and requirements - ranging from simple unsupervised public internet access or interactive payment kiosk machine to highly sophisticated public information delivery systems,.
We can also put your logo on the multi-functional bill payment kiosk,free of charge.You won't miss it,believe your own choice!
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
