와이즈카드 접촉 / 비접촉식 인코딩하는 페르소 기계 신용 카드 개인화 기계
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
상세 정보 |
|||
산업: | 은행 업무 | 타입: | 중심 발행 |
---|---|---|---|
인쇄 해상도: | 600*600 | Comm 인터페이스: | USB, 이더넷, RS232 |
인쇄 모드: | 이중 측 | OS 지원: | 윈도우 |
통신: | USB와 이더넷 | 증명서: | PCI EMV CE 로에스 |
강조하다: | Wisecard Perso Machine,RoHS Perso Machine,EMV atm card printing machine |
제품 설명

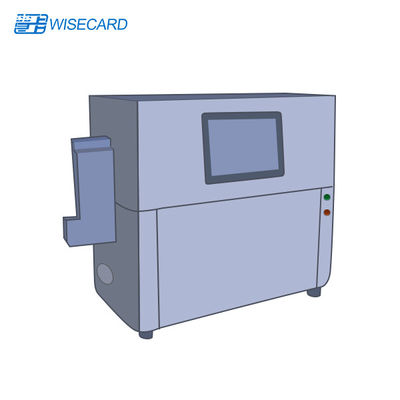

Cost-efficient and Secure EMV Card Issuance Card Printing Machine
OVERVIEW
WCT-Embosser is an upgrade product designed for the increasing production requirement of chip encapsulation & testing factories and smart card manufacturers. The brand-new design enables operators to switch chips production between 6PIN and 8PIN within 60 seconds.
It integrates short-circuit punching, open and short test, chip initialization & pre-personalization as well as reject chip punching and marking. Modular design can meet your different production requirements and maximize decreasing your investment cost.
WCT-Embosser can be applied to contact/contactless and dual interface chip initialization, and also can be customized according to the demands for various chip production.
ADVANTAGE
• Unique Patented Technology
It only takes 60s to switch production tasks between 6PIN and 8PIN contact chip.
• High-performance Reader
The top Chinese industrial-class reader developed with open/short test function is stable and high cost-effective.
• Modular Design
Each module can work independently or be combined on demand.
• Unrestricted Workplace
Free of production site due to electric driving design without external air supply.
Specification Of Retransfer Card Printer | |
Print Method | Dye-sublimation retransfer |
Print Mode | Dual side (standard configuration) |
Print Resolution | 600 x 600 dpi |
Print Speed | 170 cph (YMC single side, batch mode) |
Printhead: | Lifetime warranty (using EDIsecure® materials) (other conditions apply) |
Card Types | PVC, PET-G, PET, ABS, PC |
Card Thickness: | 0.25 mm - 1.0 mm (10 mil - 40 mil) |
Input Capacity | 250 cards (0.76mm / 30mil) |
Output Capacity | 250 cards (0.76mm / 30mil) |
Communications Interface: | USB (1.0, 1.1, 2.0, 3.0). USB cable supplied. |
Ethernet 10BaseT, 100BaseT | |
Serial RS-232C | |
OS Support | Windows 10 (32/64 bits), Windows 8 (32/64 bits), Windows 7 (32/64 bits) |
Windows Vista (32 bits), Windows Server 2008 R2 | |
Printer Net Weight | 20 kg.(44.09 lbs) - main body, not including parts |
Printer Dimension | 436 x 340 x 297 mm. (17.2” x 13.4” x 11.7”) |
Power Supply | AC90/125V, 220-240V, 50-60 Hz |
Operating Environment | Temperature: 10ºC - 30ºC |
Humidity: 20% - 80% (non-condensing) | |
Certificate | FCC, CE, UL, GOST-R, and CCC approved |
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
