와이즈카드 접촉 / 비접촉식 인코딩하는 페르소 기계 신용 카드 개인화 기계
담당자 : Steven Yao
전화 번호 : +86-13424312532
whatsapp : +8613424312532
상세 정보 |
|||
산업: | 은행 업무 | 타입: | 중심 분포되거나 즉각적 발행 |
---|---|---|---|
프인트레솔루션: | 600*600 | 코인터페이스: | USB, 이더넷, RS232 |
카드 유형: | PVC, PET-G, PET, ABS, PC | 전력 공급: | AC90/125V, 220-240V, 50-60 Hz |
강조하다: | PCI 순응하 페르소 기계,안전한 EMV 페르소 기계,PCI 신용 카드 인쇄 장비 |
제품 설명

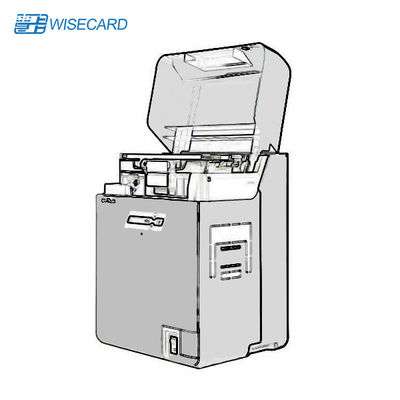

PCI Compliant Secure EMV Card Issuance Card Printing Machine Card Printer
Cost-efficient and Secure EMV Card Issuance Card Printing Machine
Wisecard provides cost-efficient and secure card issuance machine which can perform central and distributed issuace with max speed up to thousand cards per hour. With various modules combined and integrated into one versatile product Wisecard card printer is able to issue contact, contactless and magstripe cards, EMV card encoding and do indent, embossing and topping printing tasks. Wisecard card printer comes with optimized mechanical design and robust steel case.
• Initialization Module
- It realizes fast switch between 6PIN and 8PIN chip production; 120 heads at most can be configured simultaneously; Contact/contactless and dual interface chip module initialization can be achieved; The module can be set up with a standalone style
• Re-Initialization Module
- 2 sets of contact heads or 3 sets of contactless heads are equipped for automatic re-initialization of failed chips, which can reduce the rejection rate.
• Reject Chip Punching Module
- Realizing reject chip punching and the punching positon is set up flexibly via software instead of manual adjustment, which greatly improve punching precision and production efficiency; The module can be set up with a standalone style.
• Rewinding Module
- Rewinding and packing the personalized tapes with guard band; The module can be set up with a standalone style.
• Short-circuit Punching Module (Optional)
- Realizing chips short-circuit disconnection; Module tapes with different specifications can be punched by quick replace of punching mould; The module can be set up with a standalone style.
Specification Of Retransfer Card Printer | |
Print Method | Dye-sublimation retransfer |
Print Mode | Dual side (standard configuration) |
Print Resolution | 600 x 600 dpi |
Print Speed | 170 cph (YMC single side, batch mode) |
Printhead: | Lifetime warranty (using EDIsecure® materials) (other conditions apply) |
Card Types | PVC, PET-G, PET, ABS, PC |
Card Thickness: | 0.25 mm - 1.0 mm (10 mil - 40 mil) |
Input Capacity | 250 cards (0.76mm / 30mil) |
Output Capacity | 250 cards (0.76mm / 30mil) |
Communications Interface: | USB (1.0, 1.1, 2.0, 3.0). USB cable supplied. |
Ethernet 10BaseT, 100BaseT | |
Serial RS-232C | |
OS Support | Windows 10 (32/64 bits), Windows 8 (32/64 bits), Windows 7 (32/64 bits) |
Windows Vista (32 bits), Windows Server 2008 R2 | |
Printer Net Weight | 20 kg.(44.09 lbs) - main body, not including parts |
Printer Dimension | 436 x 340 x 297 mm. (17.2” x 13.4” x 11.7”) |
Power Supply | AC90/125V, 220-240V, 50-60 Hz |
Operating Environment | Temperature: 10ºC - 30ºC |
Humidity: 20% - 80% (non-condensing) | |
Certificate | FCC, CE, UL, GOST-R, and CCC approved |
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
